    Universal Conventional Lathe Machine CW6180B CW6280B Heavy Duty

    Ask Lasest Price
    Brand Name : smtcl
    Model Number : CW6180B/6280B
    Certification : ISO CE
    Supply Ability : 30 Set/Sets per Month
    Price : Negotiable
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    Universal Conventional Lathe Machine CW6180B CW6280B Heavy Duty

    CW6180B/6280B Heavy Duty Universal Manual Lathe Machine Conventional Metal Lathe Tool For Sell


    Machine Parameters

    Model

    CW6163B

    CW6263B

    CW6180B

    CW6280B

    Max. swing diameter over bed630mm800
    Max. swing diameter over carriage350mm480
    Max. work piece length1000.1500, 2000, 3000, 4000,5000, 6000, 7000

    1500,3000,4000,

    5000,6000,7000

    Max. swing diameter and width in gap800/300mm81000/300mm
    Spindle bore and nose104,D11(B series)104,D11(B series)
    Taper in spindle nose and center120(B series) Morse NO.5120(B series) Morse NO.5
    Steps and range of spindle speeds18speeds 7.5-1000(B series) r/min18speeds 5.4-720(B series) r/min
    Steps and range of longitudinal feeds64feeds 0.05-24.3 mm/r64feeds 0.06-24.3 mm/r
    Range 1:10.1-1.52 mm/r0.1-1.52 mm/r
    Range 16:11.6-24.3mm/r1.6-24.3mm/r
    Range of fine feed with change gears0.05-0.912mm/r0.06-0.912mm/r
    Longitudinal and cross feed rate1/21/2
    Quick movement of saddle4000mm/min4000mm/min
    Screw pitch12(metric);1/2''(whitworth)12(metric);1/2''(whitworth)
    Number and range of metric thread50kinds 1-24050kinds 1-240
    Number and range of whitworth thread26kinds 14-126kinds 14-1
    Number, range of module thread53kinds 0.5-120mm53kinds 0.5-120mm
    Number, range of diametral thread24kinds 28-1D P24kinds 28-1D P
    Max. cross travel of lower slide420mm500mm
    Max. travel of top slide200mm200mm
    Max. travel of tailstock quill250mm250mm
    Taper of tailstock quillMorse NO.5Morse NO.5
    Width and hardness of bed guideways550 RC52mm600 RC52mm
    Main motor power11kW11/15kW
    Rapid motor power1.1kW1.1kW
    Power of coolant pump motor120W120W
    Machine W×H1380×14501450x1630
    Max. payload of workpiece2500kg2500kg
    Product Introduction

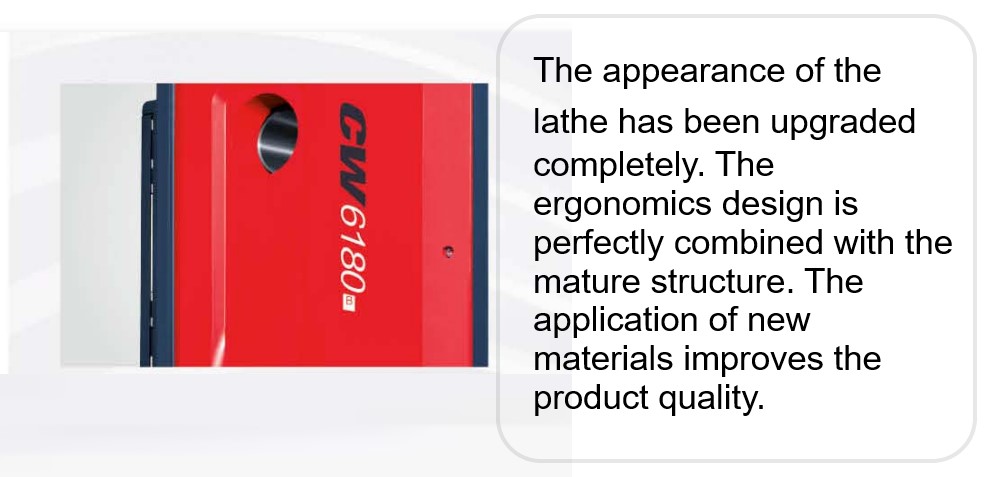

    Universal Conventional Lathe Machine CW6180B CW6280B Heavy DutyUniversal Conventional Lathe Machine CW6180B CW6280B Heavy DutyUniversal Conventional Lathe Machine CW6180B CW6280B Heavy DutyUniversal Conventional Lathe Machine CW6180B CW6280B Heavy Duty
