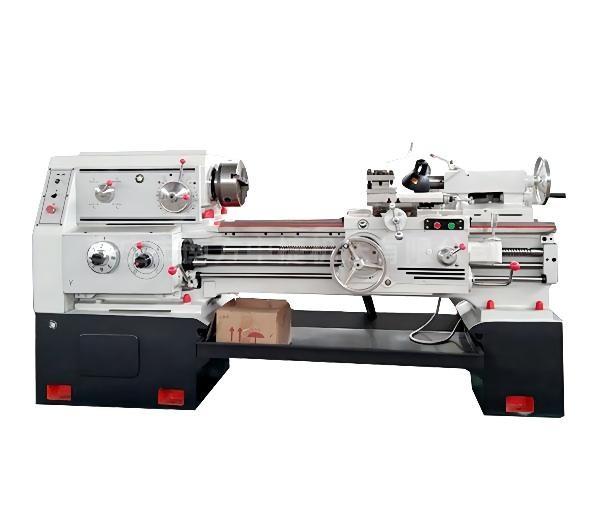

Normal Gap Bed Lathe Machine Manual CA6240 Metal Turning Machine

Normal gap bed lathe machine metal Processing Manual Lathe CA6240 metal turning machine

Product Introduction

CA6240 conventional lathe can undertake all kinds of turning work, in addition to turning inner and outer cylindrical surfaces, end faces and other rotating surfaces, turning various commonly used metric, inch, modulus, and diametral threads, as well as drilling and reaming. The precision of the processed parts and the better surface roughness can be obtained.

Main technical parameters

Model		CA6136/6236	CA6140/6240	CA6150/6250
CAPACITY	Max.swing over bed	360mm	400mm	500mm
	Max.swing over cross slide	190mm	210mm	300mm
	Max.swing over gap	520mm	560mm	660mm
	Effective length of gap	250mm
	Center Distance	750,1000,1500,2000mm
	Bed Width	360mm
HEADSTOCK	Spindle hole	52mm
	Spindle nose	ISO-C6
	Spindle taper	MT6
	Spindle speed(Number)	(9steps)40-1400rpm
	Metric threads range	18kinds 0.5-14mm
	Inch threads range	27kinds 2-40inch
	Moudle threads range	11 kinds 0.25-3.5mn
CARRIAGE	Max.travel of top slide	95mm
	Max.travel of cross slide	180mm		230mm
	Max.size of toolshank	20*20mm
TAILSTOCK	Dia.of tailstock sleeve	65mm
	Taper of tailstock sleeve	MT4
	Max.travel of tailstock	140mm
MOTOR	Main drive motor	4 or 5.5KW
	Coolant pump motor	125W
PACKING(LWH):
Center Distance	750mm	225115165cm
	1000mm	245115165cm
	1500mm	288115165cm
	2000mm	338115165cm
WEIGHT(N.W/G.W):
Center Distance	750mm	1350/1750kg	1400/1800kg	1500/1900kg
	1000mm	1450/1850kg	1500/1900kg	1600/2000kg
	1500mm	1600/2000kg	1650/2050kg	1750/2150kg
	2000mm	1750/2150kg	1800/2200kg

Product performance
