Universal Turning Conventional Lathe Machine 11 - 1600 R/min CA6140 CA6240A

CA6140A/CA6240A Conventional Turning Lathe universal lathe tool manufacturer supplier

machine description

Lathes of this kind are suitable for fuming intemal, external and cylindrical surfaces as well as other rotary surfaces. They can be used for turning different metric, whitworth, module and diametral threads and can also be used for performing reaming and broaching oil grooves etc.

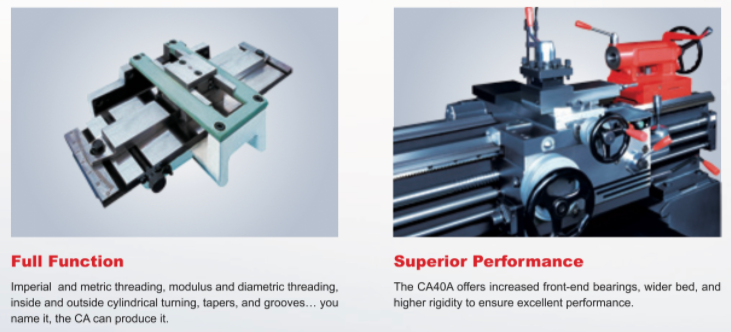

structure features
The bed is wider than that of the common ones, also with high rigidity, as the surface of the bedways is hardened by medium frequency induction, therefore, it is very durable.
The lathe is very convenient and concentrated to operate with quick movement structure on the slides.
The lathe also exceeds others in structure and delivery rigidity, as well as efficiency, and its suitable for cutting under high speed. In addition, it also has a big spindle bore and complete accessories.

Machine Parameters

Item		Unit	CA6140A/ CA6240A		CA6150A/ CA6250A		CA6161A/ CA6261A

Max. swing dia over bed		mm	400		500		610
Max. swing dia over carriage		mm	210		300		370
Max swing dia over gap/ Width of gap		mm		630*210		720*210		830*210
Max workpiece length		mm	750/650;1000/900;1500/1400;2000/1900
Width of bed / hardness mm		mm	400, Rc52		400, Rc52		400, Rc52
Section of turning tools		mm	25x25		25x25		25x25
Spindle speed range		r/min	11-1600(24)		11-1600(24)		11-1600(24)
Spindle bore and nose		mm	52 A6		52 A6		52 A6
Taper of spindle nose			Morse 6#		Morse 6#		Morse 6#
Range of longitudinal feed	Standard	mm/r	0.08-1.59		0.08-1.59		0.08-1.59
	small feed	mm/r	0.028-0.054		0.028-0.054		0.028-0.054
	enlarge feed	mm/r	1.71-6.33		1.71-6.33		1.71-6.33
Rang of cross feed	Standard	mm/r	0.04-0.79		0.04-0.79		0.04-0.79
	small feed	mm/r	0.014-0.027		0.014-0.027		0.014-0.027
	enlarge feed	mm/r	0.86-3.16		0.86-3.16		0.86-3.16
Travel of cross slide / top turret travel		mm	320/140		320/140		420/140
Swiveling angle of compound slide		degree	±90		±90		±90
Rapid travel carriage		m/min	4		4		4
Rapid travel of cross slide		m/min	2		2		2
Travel of tailstock spindle		mm	150		150		150
Diameter of tailstock spindle		mm	75		75		75
Taper of tailstock spindle			Morse 5#		Morse 5#		Morse 5#
Metric thread(kinds)		mm	1-192(44)		1-192(44)
Whitwhorth thread(kinds)		t.p.i	2-24(21)		2-24(21)		2260
Modular thread(kind)		mm	0.25-48(39)		0.25-48(39)		2437
Diameter Pitch(kinds)		D.P	1-96(37)		1-96(37)		2787
Main motor		kW	7.5		7.5		7.5
New weight of machine	750mm	kg	1990
	1000mm	kg	2070		2140		2260
	1500mm	kg	2220		2290		2437
	2000mm	kg	2570		2640		2787
Overall dimensions(L×W×H)	750mm	mm	241810001267
	1000mm	mm	266810001267		266810371312		266811301367
	1500mm	mm	316810001267		316810371312		316811301367
	2000mm	mm	366810001267		366810371312		366811301367
