    SMTCL Vertical CNC Lathe V6 Heavy Duty 3 Axis Vertical CNC Milling Machine

    Ask Lasest Price
    Brand Name : SMTCL
    Model Number : V2 V4
    Certification : CE ISO certification
    Payment Terms : T/T, L/C,, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    SMTCL Vertical CNC Lathe V6 Heavy Duty 3 Axis Vertical CNC Milling Machine


    Product Description:

    V2/4 Series High Precision vertical CNC Lathe
    CNC vertical lathe is a machine tool for machining workpieces, which is characterized by a spindle perpendicular to the work surface. It uses a numerical control system to control the movement of the tool to achieve accurate machining operation. CNC vertical lathe is usually composed of machine tool body, workbench, spindle, tool holder, CNC system and so on. The machine body is usually composed of a bed, column and beam, providing stable support and rigidity. The workbench is a platform for holding workpieces and can be lifted and rotated as needed. The spindle is the shaft used to install the tool, and the speed and feed speed can be controlled by the CNC system. The tool holder is a part used to fix the tool, which can realize the feed and rewind of the tool. Numerical control system is the core part of controlling the whole lathe operation, which can control the moving track and machining parameters of the tool through the program. CNC vertical lathe has the advantages of high precision, high efficiency and strong flexibility. It can perform a variety of machining operations, such as turning, milling, drilling, etc. Through the programming of numerical control system, the machining of complex shapes can be realized, and the machining precision and production efficiency can be improved. CNC vertical lathes are widely used in aerospace, automobile manufacturing, mold processing and other fields.

    Product Features:

    SMTCL Vertical CNC Lathe V6 Heavy Duty 3 Axis Vertical CNC Milling Machine


    A,Nitrogen balance

    Independentnitrogenbalancemechanismprovides assurance of Z-axis fastmotion and features environmentalprotectionandenergy-saving
    B,Compact structure
    The structureofmainunitiscompactand foorarea isreduced
    C,High-speed two axes
    Machiningefciencyisefectivelyenhanced
    D,lntegral spindle
    High-rigidity spindleensuressmoother cutting,anddouble-labyrinthwaterproofstructureensures reliabilityofspindle
    E,Large chip discharge angle
    chipdischargeangle is enlargedtoensure smooth chipdischarge
    F,lntegralbe
    Bed isanalyzed and optimized to enhancethe rigidityofmachinetool.
    Product Details:
    V2 Series CNC vertical lathe
    The productfeatures compact and robust high rigidity structure and applies to machining of automotive components such as small-sizebrake disc and flywheel as well as electric motor and water pump housing. The product can be used for soft/hard turning of small sizebearing and is able to realize replacement of grinding by turning.
    V4 Series CNC vertical lathe
    The product features perfect combination of high machining performance and low floor area occupation, and applies to machining ofautomotive components such as wheel hub, brake disc and flywheel, etc.The product can also be used for soft/hard turning of bearingand is able to realize replacement of grinding by turning. The product is able to realize turning of brake disc after installation of auiliaryshaft, substantially enhancing efficiency and machining accuracy
    Product Paramenters:
    Item
    Unit
    V2S
    V4C
    V4S
    Machining capacity
    Maximum swing diameter over bed
    mm
    Φ500
    Φ650
    Φ720
    Maximum cutting height
    mm
    350
    500
    650
    Maximum cutting diameter
    mm
    Φ330
    Φ500
    Φ600
    Spindle
    Spindle nose type
    A2-8
    A2-8
    A2-11
    Spindle speed range
    r/min
    50-3000
    50-2500
    50-2500
    Output power of main motor
    KW
    15/18.5
    15/18.5
    22/30
    Maximum output torque of spindle
    Nm
    472 β motor
    530 α motor
    549 β motor
    715 α motor
    1160 β motor
    1169 α motor
    Chuck diameter
    inch
    10‘’
    12‘’
    15‘’
    Feeding
    X-axis rapid traverse speed
    m/min
    30
    18
    18
    Z-axis rapid traverse speed
    r/min
    30
    18
    18
    Travel
    x-axis travel
    mm
    200
    300
    300
    Z-axis travel
    mm
    400
    520
    690
    Tool post
    Tool post type
    Horizontal 8-position
    Horizontal 8-position
    Horizontal 8-position
    Tool size
    25*25/Φ40
    25*25/Φ50
    25*25/Φ50
    Accuracy
    Machining accuracy
    IT6
    IT6-IT7
    IT6-IT7
    Surace roughness of workpiece machined
    Ra1.25
    Ra1.6
    Ra1.6
    Positioning accuracy
    X-axis
    mm
    0.008
    0.008
    0.008
    Z-axis
    mm
    0.008
    0.008
    0.008
    Positioning repeatability
    X-axis
    mm
    0.004
    0.005
    0.005
    Z-axis
    mm
    0.005
    0.005
    0.005
    Maximum load capacity
    Disks (including chuck and fixture}
    kg
    300
    350
    400
    Machine weight
    Main unit
    kg
    4500
    6800
    7300
    Overall dimension
    L×W×H
    mm
    2000*1370*2275
    2260*1780*2880
    2260*1780*3060

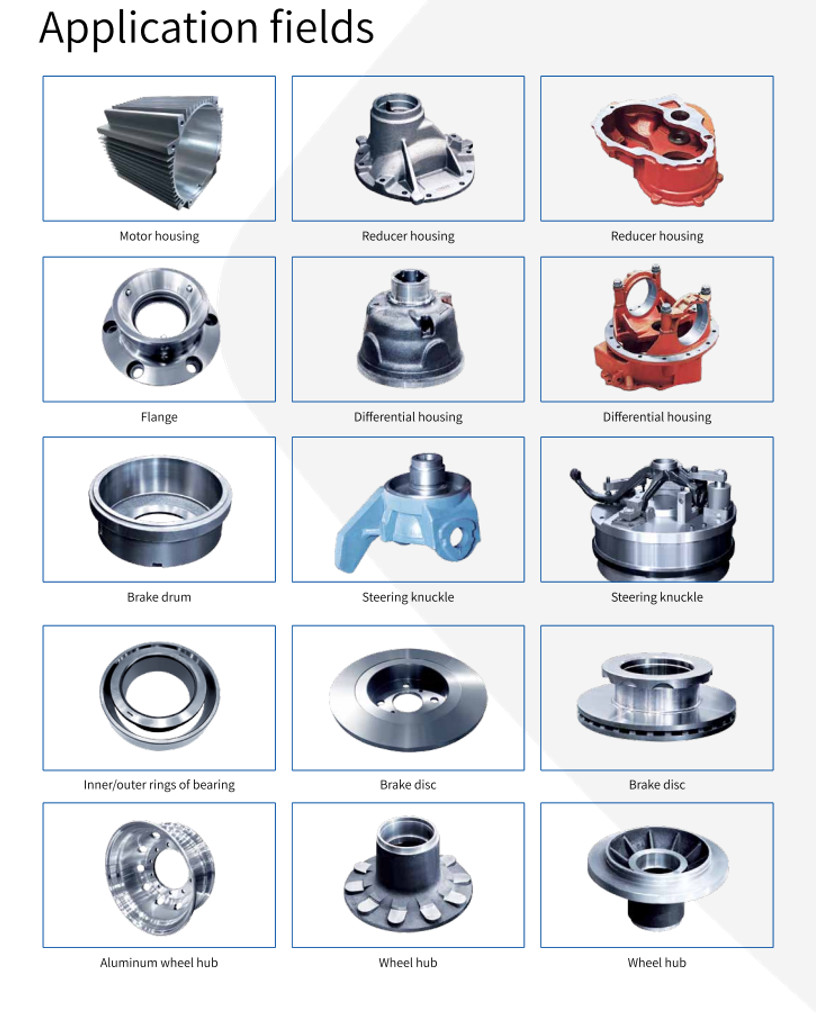

    Industry application:


    SMTCL Vertical CNC Lathe V6 Heavy Duty 3 Axis Vertical CNC Milling Machine

    OUR Service:

    1. Assemble and debug before delivery
    2. Respond within 24 hours and proceed to deal with the problem.
    3. 1 year free repair service (no-human damage only).
    4. Overall warehousing solution provided

    Why Choose Us:
    ◆ Top quality sense, customers' requests come first
    ◆ 30 years + R & D history, the company was founded in 1993
    ◆ High-tech manufacturer with research anddesign capacity
    ◆ Stable and mature supplying system
    ◆ Young active sales and engineers for instant services(24 hours online)
    ◆ Upgrading on mechanism according to ergonomics and easy maintenance
    ◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
    About Us:
    SMTCL Vertical CNC Lathe V6 Heavy Duty 3 Axis Vertical CNC Milling Machine
    Welcome to visit us!
    Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
    SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
    Our Factory:
    SMTCL Vertical CNC Lathe V6 Heavy Duty 3 Axis Vertical CNC Milling Machine
    Exhibition:

    SMTCL Vertical CNC Lathe V6 Heavy Duty 3 Axis Vertical CNC Milling Machine

    FAQ:

    Q1. Are you a trade company or manufacturing company?

    We are a manufacturing company.
    Q2. What's your main products of your company?
    We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
    Q3. Can you provide customized machine or SPM (Special purpose machine)?
    Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
    Q4: What's your warranty terms?
    We will supply a replacement for parts that prove to be defective for a period of 12 months,
    starting on the machine's bill of lading date.
    Q5. What is the services?
    Pr-sales:Customized solutions, planning and design;One-to-one service
    After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
    Q6: Why choose your company?
    Products from the development, design, manufacture, assembly of the entire production process are
    carried out between plants with a complete production chain which is your most reliable guarantee.
    Q7: Can your company send the technical personnel to our company and direct our workers overseas?
    We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
    Q8: What's the Payment Terms?
    T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
